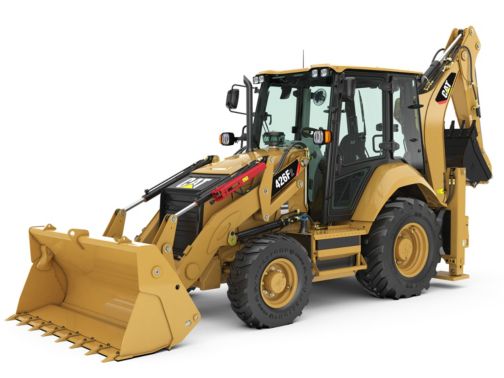

426F2
426F2
The 426F2 features a world class operator station with a standard air suspension seat, extra legroom and greater visibility. Ergonomic joystick controls provide smooth operation and low operator effort.
Perkiraan Harga Sewa *
Hubungi Kami
Minimum Pemakaian *
200 Jam/Bulan
(Harga belum termasuk PPN)
* Harga yang tercantum merupakan harga perkiraan. Kami akan menghubungi Anda setelah proses pesanan kami terima. Klik disini untuk informasi selengkapnya.
Daya - Bersih
Daya Tetapan (Standar) @ 2200 rpm: Kotor – ISO 14396
66 kW
68.5 kW
Daya Tetapan (Standar)
Daya Tetapan (Standar) @ 2200 rpm: Kotor – ISO 14396
Daya Bersih -
Daya Tetapan (Standar) @ 2200 rpm: Kotor – ISO 14396
Download
Related Materials
| File | Format | Size |
|---|
SPECIFICATION
Standard Equipment
Power - Net
66 kW
Model
Cat 3054C Mechanical Turbo
Emissions
Engine meets U.S. EPA Tier 2/EU Stage II equivalent emission standards.
Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396
68.5 kW
Net Power - 2,200 rpm - ISO 9249
66 kW
Net Peak Power - 2,000 rpm - SAE J1349
65 kW
Net Peak Power - 2,000 rpm - ISO 9249
65 kW
Net Peak Power - 2,000 rpm - EEC 80/1269
65 kW
Torque Rise - 1,200 rpm - Net
38%
Maximum Torque - 1,400 rpm
394 N·m
Bore
105 mm
Stroke
127 mm
Displacement
4.4 l
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Note (2)
No derating required up to 2286 m altitude. Auto derate protects hydraulic and transmission systems.
Standard Equipment
Operating Weight - Nominal
7990 kg
Operating Weight - Maximum
8760 kg
Standard Equipment
Type
Closed Center
Pump Type
Variable Flow, Axial Piston
Maximum Pump Capacity
132 l/min
System Pressure - Backhoe
250 bar
System Pressure - Loader
250 bar
Standard Equipment
Inside Cab
80 dB(A)
Outside Cab
104 dB(A)
Standard Equipment
Note
Travel speeds of Two Wheel Drive backhoe loader at full throttle, when equipped with 16.9×28 rear tires.
Power Shuttle Transmission - Forward 1st
5.5 km/h
Power Shuttle Transmission - Forward 2nd
9 km/h
Power Shuttle Transmission - Forward 3rd
20.7 km/h
Power Shuttle Transmission - Forward 4th
40 km/h
Power Shuttle Transmission - Reverse 1st
5.5 km/h
Power Shuttle Transmission - Reverse 2nd
9 km/h
Power Shuttle Transmission - Reverse 3rd
20.7 km/h
Power Shuttle Transmission - Reverse 4th
40 km/h
Standard Equipment
Cooling System
22 l
Fuel Tank
160 l
Engine Oil - With Filter
8.8 l
Transmission - Power Shuttle - AWD
15 l
Rear Axle
14.5 l
Rear Axle - Planetaries
1.5 l
Front Axle (AWD)
11 l
Front Axle (AWD) - Planetaries
0.7 l
Hydraulic System
106 l
Hydraulic Tank
40 l
Standard Equipment
Operating Weight - Estimated
7990 kg
Operating Weight - ROPS Capacity - Maximum
8760 kg
Counterweights - Base
115 kg
Counterweights - Medium
240 kg
Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP
115 kg
Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP
0 kg
Note
*Machine Configuration – standard engine, standard stick hoe, standard cab with A/C, AWD standard shift transmission, 0.96 m³ MP loader bucket, 610 mm standard duty hoe bucket, 12.5/80-18 and 16.9-28 tires, no counterweight, 80 kg operator and full fuel tank.
Standard Equipment
Features (1)
Heavy-duty rear axle with self adjusting inboard brakes, differential lock and final drives.
Features (2)
AWD is engaged by front console panel switch or by brake pedal during all-wheel-braking operation. AWD can be engaged on the move, under load, in any gear, forward or reverse. AWD has outer final drives for easy maintenance.
Features (3)
AWD front axle is pendulum mounted and permanently sealed and lubricated, requiring no daily maintenance. Also features double-acting steering cylinder with 52° steering angle for increased maneuverability.
Standard Equipment
Front Axle (AWD) - Static
22943 kg
Front Axle (AWD) - Dynamic
9177 kg
Rear Axle - Static
19120 kg
Rear Axle - Dynamic
7648 kg
Standard Equipment
Type
Front Wheel
Power Steering
Hydrostatic
AWD Cylinder, One (1) Double Acting - Bore
65 mm
AWD Cylinder, One (1) Double Acting - Stroke
120 mm
AWD Cylinder, One (1) Double Acting - Rod Diameter
36 mm
Turning Circle - AWD (inner wheel not braked) - Outside Front Wheels
8.18 m
Turning Circle - AWD (inner wheel not braked) - Outside Widest Loader Bucket
10.97 m
Standard Equipment
Type
Fully enclosed boosted, hydraulic, multiple discs.
Features (1)
Inboard oil-immersed, hydraulically actuated multiple Kevlar discs on final drive input shaft.
Features (2)
Completely enclosed and sealed.
Features (3)
Self-adjusting.
Features (4)
Dual foot-operated boosted brake pedals can be interlocked for roading.
Features (5)
Parking/secondary brakes are independent of the service brake system. Parking brake is mechanically applied through a hand lever located in the right side console.
Features (6)
Meets ISO 3450:1996 requirements.
Standard Equipment
Overall Length - In Roading Position
5726 mm
Overall Transportation Length
5678 mm
Overall Transportation Height - 4.3 m
3757 mm
Overall Width - Excluding Loader Bucket
2346 mm
Height - Top of Cab/Canopy
2869 mm
Height - Top of Exhaust Stack
2716 mm
Rear Axle - Centerline to Front Grill
2708 mm
Wheelbase - AWD
2200 mm
Note
Dimensions and performance specifications shown are for machines equipped with 12.5/80-18 SGL front tires, 16.9-28c rear tires, standard cab, standard stick with 610 mm standard duty bucket, and 1.05 m³ GP loader bucket and standard equipment unless otherwise specified.
Standard Equipment
Overall Length - In Roading Position
5682 mm
Overall Transportation Length
5675 mm
Overall Transportation Height - 4.3 m
3757 mm
Overall Width - Excluding Loader Bucket
2346 mm
Height - Top of Cab/Canopy
2869 mm
Height - Top of Exhaust Stack
2716 mm
Rear Axle - Centerline to Front Grill
2708 mm
Wheelbase - AWD
2200 mm
Note
Dimensions and performance specifications shown are for machines equipped with 12.5/80-18 SGL front tires, 16.9-28c rear tires, standard cab, standard stick with 610 mm standard duty bucket, and 1.05 m³ GP loader bucket and standard equipment unless otherwise specified.
Standard Equipment
Capacity
1.05 m³
Width
2262 mm
Lift Capacity at Maximum Height
3610 kg
Lift Breakout Force
54.46 kN
Tilt Breakout Force
53.92 kN
Tipping Load - Breakout Point
7012 kg
Maximum Hinge Pin Height
3447 mm
Dump Angle at Full Height
46°
Dump Height at Maximum Angle
2733 mm
Dump Reach at Maximum Angle
900 mm
Maximum Bucket Rollback at Ground Level
38°
Digging Depth
88 mm
Maximum Grading Angle
113°
Grill to Bucket Cutting Edge, Carry Position
1482 mm
Maximum Operating Height
4368 mm
Bucket Weight - Excluding Teeth and Forks
428 kg
Standard Equipment
Capacity
0.96 m³
Width
2262 mm
Lift Capacity at Maximum Height
3475 kg
Lift Breakout Force
54 kN
Tilt Breakout Force
60.48 kN
Tipping Load - Breakout Point
7110 kg
Maximum Hinge Pin Height
3447 mm
Standard Equipment
Dump Angle at Full Height
46°
Dump Height at Maximum Angle
2764 mm
Dump Reach at Maximum Angle
825 mm
Maximum Bucket Rollback at Ground Level
39°
Digging Depth
147 mm
Maximum Grading Angle
116°
Grill to Bucket Cutting Edge, Carry Position
1450 mm
Maximum Operating Height
4368 mm
Bucket Weight - Excluding Teeth and Forks
611 kg
Standard Equipment
Digging Depth - SAE Maximum
4119 mm
Digging Depth, Manufacturer's Maximum
4709 mm
Digging Depth - 2440 mm Flat Bottom
3743 mm
Digging Depth - 600 mm Flat Bottom
4094 mm
Digging Depth, 600 mm Flat Bottom, Manufacturer's
4670 mm
Reach from Swing Pivot at Ground Line
5609 mm
Maximum Operating Height
5719 mm
Loading Height
4031 mm
Loading Reach
1477 mm
Swing Arc
180°
Bucket Rotation
205°
Stabilizer Overall Width
2242 mm
Bucket Dig Force
57.22 kN
Stick Dig Force
35.29 kN
Standard Equipment
| Power - Net | 66 kW |
|---|---|
| Model | Cat 3054C Mechanical Turbo |
| Emissions | Engine meets U.S. EPA Tier 2/EU Stage II equivalent emission standards. |
| Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 | 68.5 kW |
| Net Power - 2,200 rpm - ISO 9249 | 66 kW |
| Net Peak Power - 2,000 rpm - SAE J1349 | 65 kW |
| Net Peak Power - 2,000 rpm - ISO 9249 | 65 kW |
| Net Peak Power - 2,000 rpm - EEC 80/1269 | 65 kW |
| Torque Rise - 1,200 rpm - Net | 38% |
| Maximum Torque - 1,400 rpm | 394 N·m |
| Bore | 105 mm |
| Stroke | 127 mm |
| Displacement | 4.4 l |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Note (2) | No derating required up to 2286 m altitude. Auto derate protects hydraulic and transmission systems. |
Standard Equipment
| Operating Weight - Nominal | 7990 kg |
|---|---|
| Operating Weight - Maximum | 8760 kg |
Standard Equipment
| Type | Closed Center |
|---|---|
| Pump Type | Variable Flow, Axial Piston |
| Maximum Pump Capacity | 132 l/min |
| System Pressure - Backhoe | 250 bar |
| System Pressure - Loader | 250 bar |
Standard Equipment
| Inside Cab | 80 dB(A) |
|---|---|
| Outside Cab | 104 dB(A) |
Standard Equipment
| Note | Travel speeds of Two Wheel Drive backhoe loader at full throttle, when equipped with 16.9×28 rear tires. |
|---|---|
| Power Shuttle Transmission - Forward 1st | 5.5 km/h |
| Power Shuttle Transmission - Forward 2nd | 9 km/h |
| Power Shuttle Transmission - Forward 3rd | 20.7 km/h |
| Power Shuttle Transmission - Forward 4th | 40 km/h |
| Power Shuttle Transmission - Reverse 1st | 5.5 km/h |
| Power Shuttle Transmission - Reverse 2nd | 9 km/h |
| Power Shuttle Transmission - Reverse 3rd | 20.7 km/h |
| Power Shuttle Transmission - Reverse 4th | 40 km/h |
Standard Equipment
| Cooling System | 22 l |
|---|---|
| Fuel Tank | 160 l |
| Engine Oil - With Filter | 8.8 l |
| Transmission - Power Shuttle - AWD | 15 l |
| Rear Axle | 14.5 l |
| Rear Axle - Planetaries | 1.5 l |
| Front Axle (AWD) | 11 l |
| Front Axle (AWD) - Planetaries | 0.7 l |
| Hydraulic System | 106 l |
| Hydraulic Tank | 40 l |
Standard Equipment
| Operating Weight - Estimated | 7990 kg |
|---|---|
| Operating Weight - ROPS Capacity - Maximum | 8760 kg |
| Counterweights - Base | 115 kg |
| Counterweights - Medium | 240 kg |
| Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP | 115 kg |
| Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP | 0 kg |
| Note | *Machine Configuration – standard engine, standard stick hoe, standard cab with A/C, AWD standard shift transmission, 0.96 m³ MP loader bucket, 610 mm standard duty hoe bucket, 12.5/80-18 and 16.9-28 tires, no counterweight, 80 kg operator and full fuel tank. |
Standard Equipment
| Features (1) | Heavy-duty rear axle with self adjusting inboard brakes, differential lock and final drives. |
|---|---|
| Features (2) | AWD is engaged by front console panel switch or by brake pedal during all-wheel-braking operation. AWD can be engaged on the move, under load, in any gear, forward or reverse. AWD has outer final drives for easy maintenance. |
| Features (3) | AWD front axle is pendulum mounted and permanently sealed and lubricated, requiring no daily maintenance. Also features double-acting steering cylinder with 52° steering angle for increased maneuverability. |
Standard Equipment
| Front Axle (AWD) - Static | 22943 kg |
|---|---|
| Front Axle (AWD) - Dynamic | 9177 kg |
| Rear Axle - Static | 19120 kg |
| Rear Axle - Dynamic | 7648 kg |
Standard Equipment
| Type | Front Wheel |
|---|---|
| Power Steering | Hydrostatic |
| AWD Cylinder, One (1) Double Acting - Bore | 65 mm |
| AWD Cylinder, One (1) Double Acting - Stroke | 120 mm |
| AWD Cylinder, One (1) Double Acting - Rod Diameter | 36 mm |
| Turning Circle - AWD (inner wheel not braked) - Outside Front Wheels | 8.18 m |
| Turning Circle - AWD (inner wheel not braked) - Outside Widest Loader Bucket | 10.97 m |
Standard Equipment
| Type | Fully enclosed boosted, hydraulic, multiple discs. |
|---|---|
| Features (1) | Inboard oil-immersed, hydraulically actuated multiple Kevlar discs on final drive input shaft. |
| Features (2) | Completely enclosed and sealed. |
| Features (3) | Self-adjusting. |
| Features (4) | Dual foot-operated boosted brake pedals can be interlocked for roading. |
| Features (5) | Parking/secondary brakes are independent of the service brake system. Parking brake is mechanically applied through a hand lever located in the right side console. |
| Features (6) | Meets ISO 3450:1996 requirements. |
Standard Equipment
| Overall Length - In Roading Position | 5726 mm |
|---|---|
| Overall Transportation Length | 5678 mm |
| Overall Transportation Height - 4.3 m | 3757 mm |
| Overall Width - Excluding Loader Bucket | 2346 mm |
| Height - Top of Cab/Canopy | 2869 mm |
| Height - Top of Exhaust Stack | 2716 mm |
| Rear Axle - Centerline to Front Grill | 2708 mm |
| Wheelbase - AWD | 2200 mm |
| Note | Dimensions and performance specifications shown are for machines equipped with 12.5/80-18 SGL front tires, 16.9-28c rear tires, standard cab, standard stick with 610 mm standard duty bucket, and 1.05 m³ GP loader bucket and standard equipment unless otherwise specified. |
Standard Equipment
| Overall Length - In Roading Position | 5682 mm |
|---|---|
| Overall Transportation Length | 5675 mm |
| Overall Transportation Height - 4.3 m | 3757 mm |
| Overall Width - Excluding Loader Bucket | 2346 mm |
| Height - Top of Cab/Canopy | 2869 mm |
| Height - Top of Exhaust Stack | 2716 mm |
| Rear Axle - Centerline to Front Grill | 2708 mm |
| Wheelbase - AWD | 2200 mm |
| Note | Dimensions and performance specifications shown are for machines equipped with 12.5/80-18 SGL front tires, 16.9-28c rear tires, standard cab, standard stick with 610 mm standard duty bucket, and 1.05 m³ GP loader bucket and standard equipment unless otherwise specified. |
Standard Equipment
| Capacity | 1.05 m³ |
|---|---|
| Width | 2262 mm |
| Lift Capacity at Maximum Height | 3610 kg |
| Lift Breakout Force | 54.46 kN |
| Tilt Breakout Force | 53.92 kN |
| Tipping Load - Breakout Point | 7012 kg |
| Maximum Hinge Pin Height | 3447 mm |
| Dump Angle at Full Height | 46° |
| Dump Height at Maximum Angle | 2733 mm |
| Dump Reach at Maximum Angle | 900 mm |
| Maximum Bucket Rollback at Ground Level | 38° |
| Digging Depth | 88 mm |
| Maximum Grading Angle | 113° |
| Grill to Bucket Cutting Edge, Carry Position | 1482 mm |
| Maximum Operating Height | 4368 mm |
| Bucket Weight - Excluding Teeth and Forks | 428 kg |
Standard Equipment
| Capacity | 0.96 m³ |
|---|---|
| Width | 2262 mm |
| Lift Capacity at Maximum Height | 3475 kg |
| Lift Breakout Force | 54 kN |
| Tilt Breakout Force | 60.48 kN |
| Tipping Load - Breakout Point | 7110 kg |
| Maximum Hinge Pin Height | 3447 mm |
Standard Equipment
| Dump Angle at Full Height | 46° |
|---|---|
| Dump Height at Maximum Angle | 2764 mm |
| Dump Reach at Maximum Angle | 825 mm |
| Maximum Bucket Rollback at Ground Level | 39° |
| Digging Depth | 147 mm |
| Maximum Grading Angle | 116° |
| Grill to Bucket Cutting Edge, Carry Position | 1450 mm |
| Maximum Operating Height | 4368 mm |
| Bucket Weight - Excluding Teeth and Forks | 611 kg |
Standard Equipment
| Digging Depth - SAE Maximum | 4119 mm |
|---|---|
| Digging Depth, Manufacturer's Maximum | 4709 mm |
| Digging Depth - 2440 mm Flat Bottom | 3743 mm |
| Digging Depth - 600 mm Flat Bottom | 4094 mm |
| Digging Depth, 600 mm Flat Bottom, Manufacturer's | 4670 mm |
| Reach from Swing Pivot at Ground Line | 5609 mm |
| Maximum Operating Height | 5719 mm |
| Loading Height | 4031 mm |
| Loading Reach | 1477 mm |
| Swing Arc | 180° |
| Bucket Rotation | 205° |
| Stabilizer Overall Width | 2242 mm |
| Bucket Dig Force | 57.22 kN |
| Stick Dig Force | 35.29 kN |
