D5R2
D5R2

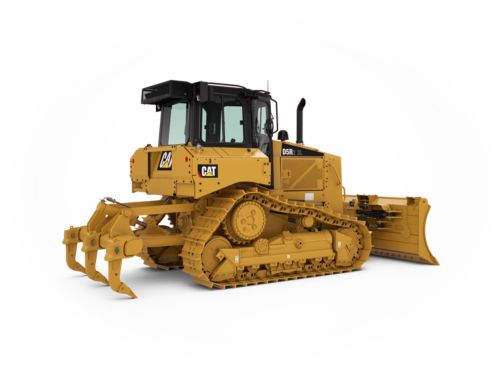

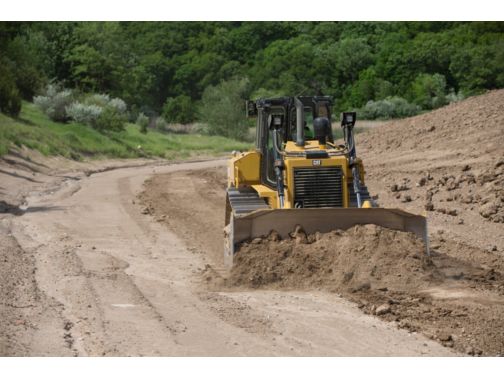

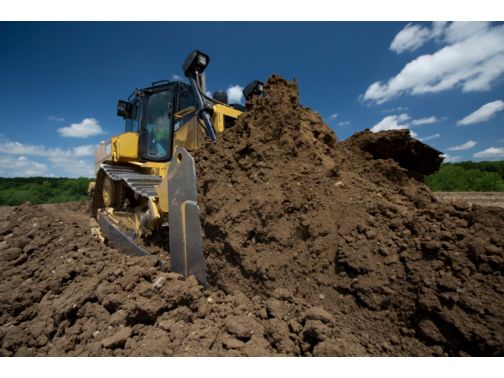

The Cat® D5R2 bulldozer gives you the power you need for earthmoving with the precision and maneuverability you want for fine grading. Well known Cat dozer features like differential steering and elevated sprocket are joined with a new cab and optional GRADE technology features to give you world-class performance and ease of operation.
Perkiraan Harga Sewa *
Hubungi Kami
Minimum Pemakaian *
200 Jam/Bulan
(Harga belum termasuk PPN)
* Harga yang tercantum merupakan harga perkiraan. Kami akan menghubungi Anda setelah proses pesanan kami terima. Klik disini untuk informasi selengkapnya.
Model Engine
Daya - Bersih
Bobot Kerja
Beroperasi - D5R2 XL (SU)
Download
Related Materials
| File | Format | Size |
|---|
SPECIFICATION
Standard Equipment
Engine Model
Cat C7.1
Power - Net
114 kW
Net Power - Rated* - ISO 9249/SAE J1349
114 kW
Net Power - Rated* - ISO 9249/SAE J1349 (DIN)
155 HP
Emissions
Meets China Nonroad Stage III emission standards, equivalent to U.S. EPA Tier 3/EU Stage IIIA
Note
*Rated 2,200 rpm
Standard Equipment
Fuel Tank
299 l
Standard Equipment
Operating Weight
16032 kg
Operating - D5R2 XL (SU)
16119 kg
Operating - D5R2 XL (VPAT)
16032 kg
Operating - D5R2 XL (A)
17003 kg
Operating - D5R2 LGP (VPAT)
18504 kg
Standard Equipment
Ground Pressure (ISO 16754) - SU-Blade
54.5 kPa
Ground Pressure (ISO 16754) - VPAT-Blade
54.2 kPa
Ground Pressure (ISO 16754) - A-Blade
57.5 kPa
Standard Equipment
Ground Pressure (ISO 16754) - VPAT-Blade
34.7 kPa
Standard Equipment
SU XL - Capacity (SAE J1265)
4.28 m³
VPAT XL - Capacity (SAE J1265)
3.18 m³
A XL - Capacity - SAE J1265
3.18 m³
VPAT LGP - Capacity (SAE J1265)
3.16 m³
SU XL - Width
3154 mm
VPAT XL - Width
3272 mm
A XL - Width
4165 mm
VPAT LGP - Width
4080 mm
Standard Equipment
| Engine Model | Cat C7.1 |
|---|---|
| Power - Net | 114 kW |
| Net Power - Rated* - ISO 9249/SAE J1349 | 114 kW |
| Net Power - Rated* - ISO 9249/SAE J1349 (DIN) | 155 HP |
| Emissions | Meets China Nonroad Stage III emission standards, equivalent to U.S. EPA Tier 3/EU Stage IIIA |
| Note | *Rated 2,200 rpm |
Standard Equipment
| Fuel Tank | 299 l |
|---|
Standard Equipment
| Operating Weight | 16032 kg |
|---|---|
| Operating - D5R2 XL (SU) | 16119 kg |
| Operating - D5R2 XL (VPAT) | 16032 kg |
| Operating - D5R2 XL (A) | 17003 kg |
| Operating - D5R2 LGP (VPAT) | 18504 kg |
Standard Equipment
| Ground Pressure (ISO 16754) - SU-Blade | 54.5 kPa |
|---|---|
| Ground Pressure (ISO 16754) - VPAT-Blade | 54.2 kPa |
| Ground Pressure (ISO 16754) - A-Blade | 57.5 kPa |
Standard Equipment
| Ground Pressure (ISO 16754) - VPAT-Blade | 34.7 kPa |
|---|
Standard Equipment
| SU XL - Capacity (SAE J1265) | 4.28 m³ |
|---|---|
| VPAT XL - Capacity (SAE J1265) | 3.18 m³ |
| A XL - Capacity - SAE J1265 | 3.18 m³ |
| VPAT LGP - Capacity (SAE J1265) | 3.16 m³ |
| SU XL - Width | 3154 mm |
| VPAT XL - Width | 3272 mm |
| A XL - Width | 4165 mm |
| VPAT LGP - Width | 4080 mm |
