D6R2
D6R2

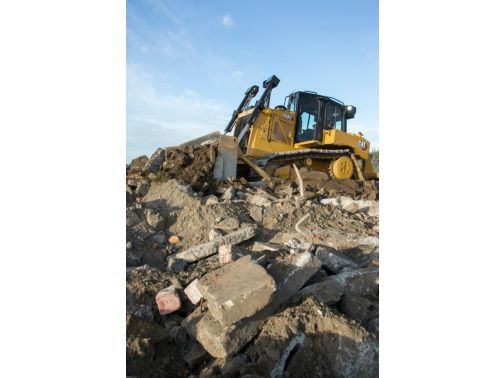

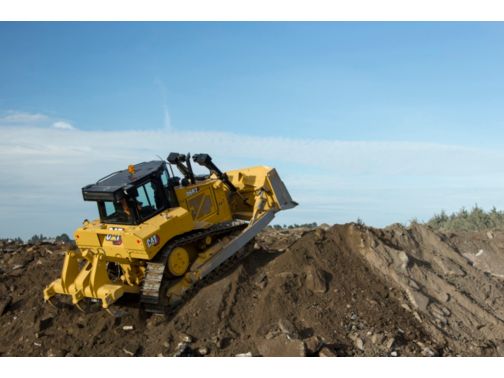

The Cat D6R2 dozer comes to your job site backed by more than 100 years of track-type tractor leadership. Caterpillar designs and builds the integrated engine and power train to work together so you experience maximum productivity, efficiency and reliability. Features like two-pump hydraulics and differential steering bring you a new level of versatility and maneuverability. From rugged structures to operator comfort, the D6R2 is a world-class dozer built to help you produce the highest quality work in a variety of applications.
Perkiraan Harga Sewa *
Hubungi Kami
Minimum Pemakaian *
200 Jam/Bulan
(Harga belum termasuk PPN)
* Harga yang tercantum merupakan harga perkiraan. Kami akan menghubungi Anda setelah proses pesanan kami terima. Klik disini untuk informasi selengkapnya.
Model Engine
Daya - Bersih
Bobot Kerja
Beroperasi - D6R2 (S)
Download
Related Materials
| File | Format | Size |
|---|
SPECIFICATION
Standard Equipment
Engine Model
Cat C9
Power - Net
148 kW
Note (1)
Rated engine speed at 2,200 rpm
Emissions
Meets U.S. EPA Tier 2/EU Stage II equivalent and Certified to China Nonroad II emission standards
Standard Equipment
Net Power - Rated - ISO 9249/SAE J1349
133 kW
Standard Equipment
Net Power - Rated - ISO 9249/SAE J1349
148 kW
Standard Equipment
Fuel Tank
424 l
Standard Equipment
Operating Weight
18984 kg
Operating - D6R2 (S)
18984 kg
Operating - D6R2 (SU)
19066 kg
Operating - D6R2 (A)
19448 kg
Operating - D6R2 XL (SU)
19914 kg
Operating - D6R2 XL (A)
19969 kg
Operating - D6R2 LGP (S)
21661 kg
Standard Equipment
Ground Pressure - SU - Blade (ISO 16754)
61 kPa
Standard Equipment
Ground Pressure - A-Blade (ISO 16754)
64 kPa
Standard Equipment
Ground Pressure - SLGP - Blade (ISO 16754)
35 kPa
Standard Equipment
S-Blade Capacity
4 m³
SU - Blade Capacity
5.6 m³
A-Blade Capacity
4 m³
SU XL - Capacity
5.6 m³
A XL - Capacity
4 m³
S-Blade Capacity - LGP
3.8 m³
S-Blade Width
3360 mm
SU - Blade Width
3260 mm
A-Blade Width
4166 mm
SU XL - Width
3260 mm
A XL - Width
4166 mm
S-Blade Width - LGP
4063 mm
Standard Equipment
| Engine Model | Cat C9 |
|---|---|
| Power - Net | 148 kW |
| Note (1) | Rated engine speed at 2,200 rpm |
| Emissions | Meets U.S. EPA Tier 2/EU Stage II equivalent and Certified to China Nonroad II emission standards |
Standard Equipment
| Net Power - Rated - ISO 9249/SAE J1349 | 133 kW |
|---|
Standard Equipment
| Net Power - Rated - ISO 9249/SAE J1349 | 148 kW |
|---|
Standard Equipment
| Fuel Tank | 424 l |
|---|
Standard Equipment
| Operating Weight | 18984 kg |
|---|---|
| Operating - D6R2 (S) | 18984 kg |
| Operating - D6R2 (SU) | 19066 kg |
| Operating - D6R2 (A) | 19448 kg |
| Operating - D6R2 XL (SU) | 19914 kg |
| Operating - D6R2 XL (A) | 19969 kg |
| Operating - D6R2 LGP (S) | 21661 kg |
Standard Equipment
| Ground Pressure - SU - Blade (ISO 16754) | 61 kPa |
|---|
Standard Equipment
| Ground Pressure - A-Blade (ISO 16754) | 64 kPa |
|---|
Standard Equipment
| Ground Pressure - SLGP - Blade (ISO 16754) | 35 kPa |
|---|
Standard Equipment
| S-Blade Capacity | 4 m³ |
|---|---|
| SU - Blade Capacity | 5.6 m³ |
| A-Blade Capacity | 4 m³ |
| SU XL - Capacity | 5.6 m³ |
| A XL - Capacity | 4 m³ |
| S-Blade Capacity - LGP | 3.8 m³ |
| S-Blade Width | 3360 mm |
| SU - Blade Width | 3260 mm |
| A-Blade Width | 4166 mm |
| SU XL - Width | 3260 mm |
| A XL - Width | 4166 mm |
| S-Blade Width - LGP | 4063 mm |
